International Harvester 624 Tractors
 |
|
Power: 58 hp
Date of manufacture : 1965 - 1972 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| International Harvester 624 Power |
| Engine: | 58 hp
43.3 kW
|
| International Harvester 624 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | foot-operated
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed
|
| | 12-speed partial power shift
|
| Photos |

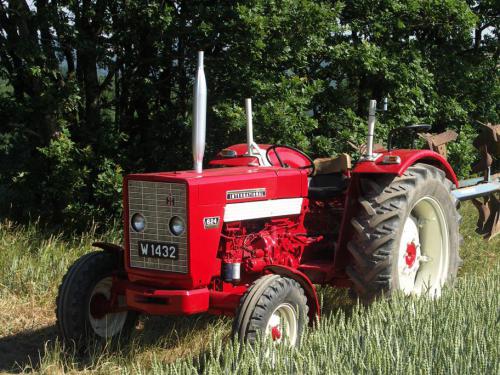

| | International Harvester 624 photos... |
| Hydraulics |
| Pump flow: | 7.5 gpm
28.4 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 3748 lbs
1700 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 83.5 inches
212 cm
|
| Weight: | 5732 to 6592 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 13-30 (2WD)
|
| Full dimensions and tires ... |
| 624 Serial Numbers |
| Location: | Right side of tractor, mid-frame
|
| 1965: | NT 800001
|
| 1966: | ---
|
| 1967: | NT 809456
|
| 1968: | NT 813620
|
| 1969: | NT 818263
|
| 1970: | NT 822042
|
| 1971: | NT 824048
|
| 1972: | NT 824720
|
how to read serial numbers...
|
| Electrical |
| Charging system: | Bosch generator
|
| Charging amps: | 11
|
| | 16
|
| Battery volts: | 12
|
|
