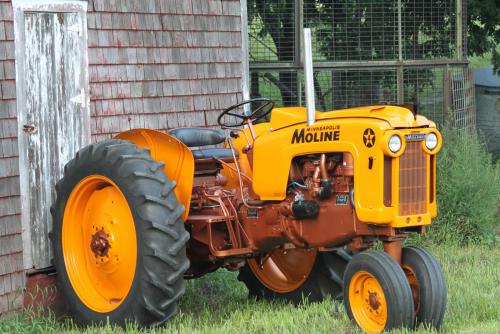

Minneapolis-Moline 4 Star Tractors
 |
|
Power: 52 hp[P]
Date of manufacture : 1959 - 1963 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Row-Crop tractor
|
| Original price: | $3,300 (1962 )
|
| Minneapolis-Moline 4 Star Power |
| Drawbar (claimed): | 39 hp
29.1 kW
|
| Gas PTO (claimed): | 47 hp
35.0 kW
|
| LP-gas PTO (claimed): | 48 hp
35.8 kW
|
| Diesel PTO (claimed): | 44 hp
32.8 kW
|
| Drawbar (tested): | 38.58 hp
28.8 kW
|
| PTO (tested): | 44.57 hp
33.2 kW
|
| Minneapolis-Moline 4 Star Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmissions: | 5-speed gear
|
| | 10-speed two-speed power shift
|
| Photos |
| | Minneapolis-Moline 4 Star photos... |
| Power Take-off (PTO) |
| Rear PTO: | live
|
| | independent*On 4 Star Super
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 87 inches
220 cm
|
| Weight: | 4120 to 4320 pounds
|
| Front tire: | 5.50-16
|
| Rear tire: | 13.6-38
|
| Full dimensions and tires ... |
| 4 Star Serial Numbers |
| Location: | Serial number plate on the right side of the 4-Star frame, just behind the brake pedals.
|
photo of 4 Star serial number
| | 1959: | 16600001
|
| 1960: | 16600891
|
| 1961: | 16601686
|
| 1962: | 16601861
|
| 1963: | 16602408
|
| 1960: | 18200001 (diesel)
|
| 1961: | 18200051 (diesel)
|
| 1962: | 18200073 (diesel)
|
how to read serial numbers...
| |
