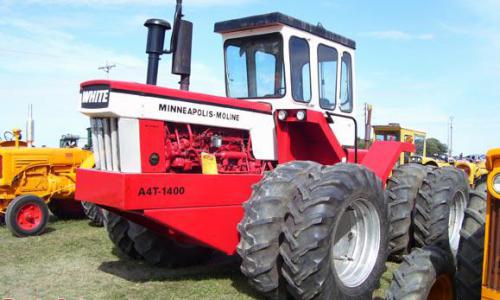

Minneapolis-Moline A4T-1400 Tractors
 |
|
Power: 154 hp[P]
Date of manufacture : 1969 - 1970 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Minneapolis, Minnesota, USA
|
| Minneapolis-Moline A4T-1400 Power |
| PTO (claimed): | 139 hp
103.7 kW
|
| Minneapolis-Moline A4T-1400 Engine |
| Mechanical |
| Chassis: | 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Open operator station.
|
| Transmission: | 10-speed
|
| Photos |
| | Minneapolis-Moline A4T-1400 photos... |
| Capacity |
| Fuel: | 100 gal
378.5 L
|
| Hydraulic system: | 32 gal
121.1 L
|
| Hydraulics |
| Type: | open
|
| Capacity: | 32 gal
121.1 L
|
| Valves: | 2
|
| Pump flow: | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm
|
| Weight: | 17,400 lbs
7892 kg
|
| Front tire: | 18.4-34
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| A4T-1400 Serial Numbers |
| Location: | Serial number plate on the tractor's transmission case, left side.
|
| 1969: | 43-900-001
|
| 1970: | 43-900-103
|
| Final: | 43-900-247
|
how to read serial numbers...
| |
