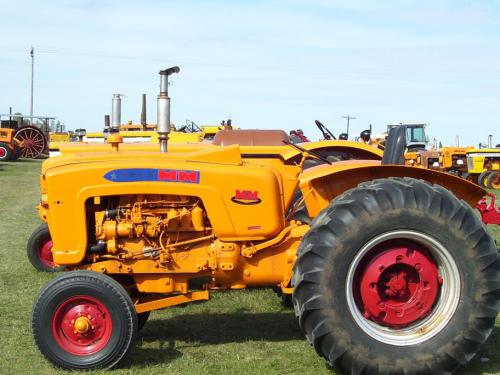

Minneapolis-Moline 5 Star Tractors
 |
|
Power: 63 hp[P]
Date of manufacture : 1957 - 1960 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Factory: | Minneapolis, Minnesota, USA
|
| Original price: | $4,500 (1961 )
|
| Variants |
| Universal U: | tricycle-front
|
| Universal N: | single front wheel
|
| Universal E: | adjustable wide-front
|
| Standard C1S: | standard-front
|
| Industrial C1W: | industrial
|
| Minneapolis-Moline 5 Star Power |
| Drawbar (claimed): | 40 hp
29.8 kW
|
| PTO (claimed): | 57 hp
42.5 kW
|
| Drawbar (tested): | 49.62 hp
37.0 kW
|
| PTO (tested): | 54.96 hp
41.0 kW
|
| Minneapolis-Moline 5 Star Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | bull gear
|
| Steering: | power assist
|
| Brakes: | disc
|
| Cab: | Open operator station.
|
| Transmission: | 10-speed partial power shift
|
| Photos |
| | Minneapolis-Moline 5 Star photos... |
| Hydraulics |
| Type: | Tel-O-Flo
|
| Valves: | 2
|
| Tractor hitch |
| Rear Type: | II/I
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 553@1500
|
| Dimensions & Tires |
| Wheelbase: | 94 inches
238 cm
|
| Weight: | 6500 lbs
2948 kg
|
| Front tire: | 6.00x16
|
| Rear tire: | 13.6x38
|
| Full dimensions and tires ... |
| 5 Star Serial Numbers |
| Location: | Side of transmission case
|
| 1957: | 11000001 (Universal)
|
| 1958: | 11001058 (Universal)
|
| 1959: | 11700060 (Universal)
|
| 1960: | 11700060 (Universal)
|
| 1961: | 18900041 (Universal)
|
| 1957: | 14400001 (diesel Universal)
|
| 1958: | 14400204 (diesel Universal)
|
| 1959: | 14400786 (diesel Universal)
|
| 1960: | 14401296 (diesel Universal)
|
| 1958: | 11200001 (Standard)
|
| 1959: | 11200212 (Standard)
|
| 1960: | 11800022 (Standard)
|
| 1958: | 14500001 (diesel Standard)
|
| 1959: | 14500166 (diesel Standard)
|
| Final: | 14500188 (diesel Standard)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 12 inches
30 cm
|
| Width: | 7 inches
17 cm
|
| RPM: | 1018
|
| Speed: | 3200 ft/min
975.36 meters/min
|
| Electrical |
| Ground: | positive
|
| Battery volts: | 12
|
|
