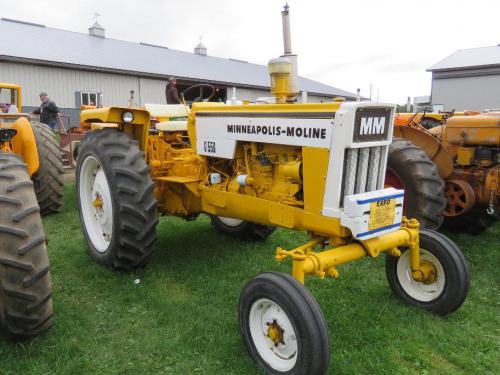

Minneapolis-Moline G550 Tractors
 |
|
Power: 58 hp[P]
Date of manufacture : 1971 - 0000 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Row-Crop tractor
|
| Original price: | $6,500 (1975 )
|
| Minneapolis-Moline G550 Power |
| PTO (claimed): | 53 hp
39.5 kW
|
| Drawbar (tested): | 45.7 hp
34.1 kW
|
| PTO (tested): | 53.50 hp
39.9 kW
|
| Minneapolis-Moline G550 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | disc
|
| Cab: | Open operator station. Cab optional with available heater.
|
| Transmissions: | 12-speed partial power shift
|
| | 6-speed unsynchronized gear
|
| Photos |
| | Minneapolis-Moline G550 photos... |
| Capacity |
| Fuel: | 27.5 gal
104.1 L
|
| Hydraulic system: | 14 gal
53.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 14 gal
53.0 L
|
| Valves: | 2 to 4
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | lower-link draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 1000
|
| | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 99 inches
251 cm
|
| Weight: | 6841 lbs
3103 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 15.5-38
|
| Full dimensions and tires ... |
| G550 Serial Numbers |
| Location: | Serial number plate below instrument panel.
|
photo of G550 serial number
| | 1969: | 218-128
|
| 1970: | 221-295
|
| 1971: | 225-914
|
| 1972: | 232-089
|
| 1973: | 236-883
|
| 1974: | 244-937
|
| 1975: | 256-165
|
| Final: | 262-877
|
how to read serial numbers...
| |
