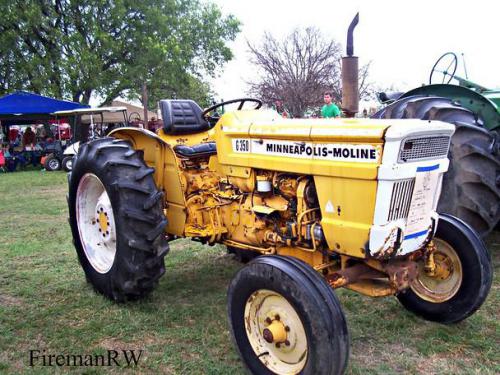

Minneapolis-Moline G350 Tractors
 |
|
Power: 45 hp[P]
Date of manufacture : 1971 - 1975 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Utility tractor
|
| Original price: | $6,900 (1975 )
|
| Minneapolis-Moline G350 Power |
| PTO (claimed): | 41 hp
30.6 kW
|
| Minneapolis-Moline G350 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Brakes: | mechanical band
|
| Cab: | Open operator station.
|
| Transmissions: | 6-speed partially synchronized
|
| | 9-speed creeper
|
| Capacity |
| Fuel: | 14.25 gal
53.9 L
|
| Hydraulic system: | 4.5 gal
17.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4.5 gal
17.0 L
|
| Pressure: | 2133 psi
147.1 bar
|
| Pump flow: | 5.76 gpm
21.8 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 2660 lbs
1206 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live*Dual-stage clutch
|
| Rear RPM: | 540/ground
|
| Engine RPM: | 540@1970
|
| Dimensions & Tires |
| Wheelbase: | 75.5 inches
191 cm
|
| Weight: | 3710 to 4300 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 13.6-28
|
| G350 Serial Numbers |
| Location: | Serial number plate below instrument panel.
|
| 1971: | 302402
|
| 1972: | 304497
|
| 1973: | 307221
|
| 1974: | 314369
|
| 1975: | 317000
|
| Final: | 321497
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 42
|
| Battery volts: | 12
|
|
