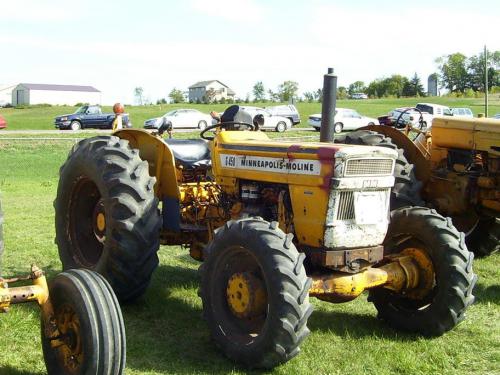

Minneapolis-Moline G450 Tractors
 |
|
Power: 61 hp[P]
Date of manufacture : 1971 - 1975 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Type: | Utility tractor
|
| Original price: | $9,000 (1975 )
|
| Minneapolis-Moline G450 Power |
| PTO (claimed): | 55 hp
41.0 kW
|
| Minneapolis-Moline G450 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Brakes: | mechanical band
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed partially synchronized
|
| | 12-speed creeper
|
| Photos |
| | Minneapolis-Moline G450 photos... |
| Capacity |
| Fuel: | 14.25 gal
53.9 L
|
| Hydraulic system: | 4.5 gal
17.0 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4.5 gal
17.0 L
|
| Pressure: | 2133 psi
147.1 bar
|
| Pump flow: | 5.76 gpm
21.8 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 3100 lbs
1406 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1970
|
| Dimensions & Tires |
| Wheelbase: | 80.8 inches
205 cm
|
| Weight: | 4410 to 4940 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-30
|
| G450 Serial Numbers |
| Location: | Serial number plate below the instrument panel.
|
| 1971: | 706247
|
| 1972: | 706277
|
| 1973: | 714614
|
| 1974: | 725451
|
| 1975: | 729125
|
| Final: | 766614
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 42
|
| Battery volts: | 12
|
|
