| Production |
| Manufacturer: | J.I. Case
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 17,413
|
| Original price: | $31,400 (1978)
|
| J.I. Case 1370 Power |
| Drawbar (tested): | 130.9 hp
97.6 kW
|
| PTO (tested): | 155.56 hp
116.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Differential lock: | hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet discs
|
| Cab: | Cab standard. Four-post ROPS and open-station available.
|
| Transmission: | 12-speed partial power shift
|
| Photos |

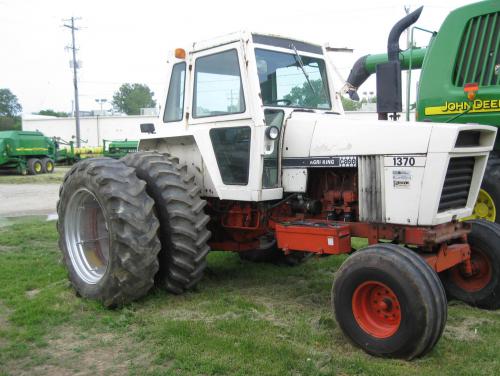

| | J.I. Case 1370 photos... |
| Capacity |
| Fuel: | 80 gal
302.8 L
|
| Hydraulic system: | 34.5 gal
130.6 L
|
| Hydraulics |
| Type: | variable flow (optional)
|
| Capacity: | 34.5 gal
130.6 L
|
| Pressure: | 2050 psi
141.3 bar
|
| Valves: | 2
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Total flow: | 28 gpm
106.0 lpm
|
| | 48 gpm
181.7 lpm (optional)
|
| Steering flow: | 8 gpm
30.3 lpm
|
| Tractor hitch |
| Rear Type: | II, III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 11690 to 13170 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1370 Serial Numbers |
| 1971: | 8674001
|
| 1972: | 8691801
|
| 1973: | 8712001
|
| 1974: | 8736601
|
| 1975: | 8770001
|
| 1976: | 8797501
|
| 1977: | 8810601
|
| 1978: | 8830001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Batteries: | 2
|
| Battery CCA: | 300
|
| Battery volts: | 12
|
| Battery Group: | 30H
|
|
