Case 1394 Tractors

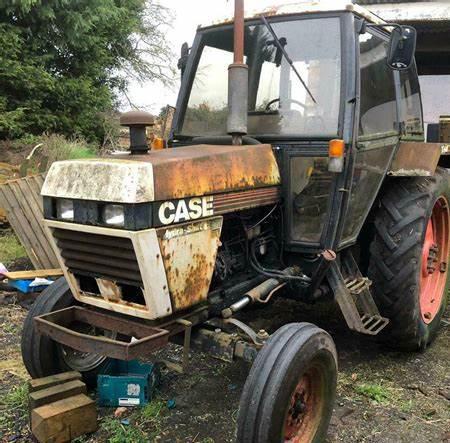

Case 1394
Power: 77 hp
Date of manufacture :
1983 - 1984
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factory:Meltham Mills, Huddersfield, England
Original price:$22,000 (1988)
J.I. Case 1394 Power
Engine:77 hp
57.4 kW
PTO (claimed):65 hp
48.5 kW
J.I. Case 1394 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:drum
Cab:Cab with air-conditioning optional.
Transmissions:12-speed synchromesh
 12-speed partial power shift
Hydraulics
Type:open
Pressure:2550 psi
175.8 bar
Valves:1 to 3
Total flow:7.7 gpm
29.1 lpm
 15.3 gpm
57.9 lpm (tandem)
Steering flow:7.7 gpm
29.1 lpm
Steering press.:1500 psi
103.4 bar
Tractor hitch
Rear Type:II/I
Rear lift (at ends):5,000 lbs
2268 kg
Rear lift (at 24"/610mm):2,990 lbs
1356 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:83 inches
210 cm (2WD)
 84.5 inches
214 cm (4WD)
Weight:6520 to 7160 pounds
Front tire:7.50-16
Rear tire:13.6-36
1394 Serial Numbers
Location:Main frame on right side
1983:11131000
1984:11136919

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:45
 65 (heavy duty)
Battery CCA:420
 550 (heavy duty)
Battery volts:12
Battery AH:96
 128 (heavy duty)
