| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| CaseIH MX230 Power |
| Engine: | 234 hp
174.5 kW
|
| PTO (claimed): | 190 hp
141.7 kW
|
| Drawbar (tested): | 165.17 hp
123.2 kW
|
| PTO (tested): | 216.55 hp
161.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Surveyor Cab standard with air-conditioning. Optional automatic climate control.
|
| Transmission: | 18-speed full power shift
|
| Photos |

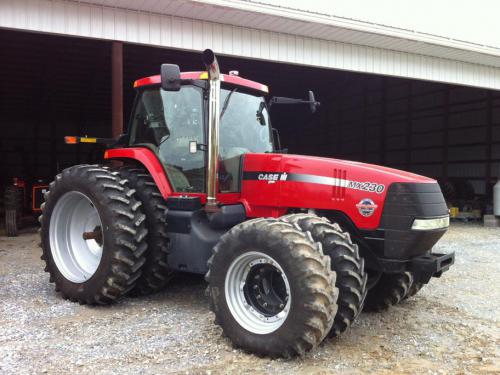

| | CaseIH MX230 photos... |
| Capacity |
| Fuel: | 130 gal
492.1 L
|
| | 160 gal
605.6 L (optional)
|
| Hydraulic system: | 45.5 gal
172.2 L
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC) with parallel priority
|
| Capacity: | 45.5 gal
172.2 L
|
| Pressure: | 2950 psi
203.4 bar
|
| Valves: | 3 to 5
|
| Total flow: | 38.6 gpm
146.1 lpm
|
| | 53.1 gpm
201.0 lpm (optional)
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Control: | electronic draft control
|
| Rear lift: | 13,960 lbs
6332 kg
|
| | 15,970 lbs
7243 kg (optional)
|
| Front Hitch: | optional
|
| Front lift: | 7,170 lbs
3252 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| | 540/1000 (1.375 optional)
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm (2WD)
|
| | 118.3 inches
300 cm (4WD)
|
| Weight: | 18700 to 20100 pounds
|
| Full dimensions and tires ... |
| MX230 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor frame, above the front axle.
|
photo of MX230 serial number
| | 2003: | JAZ125000
|
| 2004: | JAZ129400
|
| 2005: | JAZ134001
|
| 2006: | JAZ138614
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 135
|
| Charging volts: | 12
|
| Batteries: | 2
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
