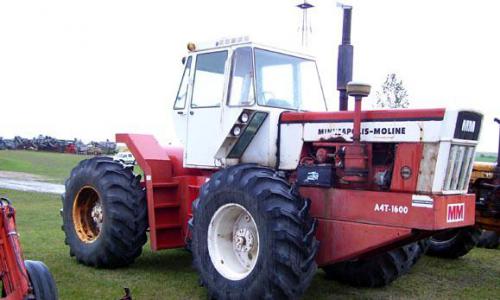

Minneapolis-Moline A4T-1600 Tractors
 |
|
Power: 169 hp
Date of manufacture : 1970 - 1972 |
| Production |
| Manufacturer: | Minneapolis-Moline
|
| Factory: | Minneapolis, Minnesota, USA
|
| Minneapolis-Moline A4T-1600 Power |
| Engine: | 169 hp
126.0 kW
|
| Drawbar (claimed): | 123 hp
91.7 kW
|
| PTO (claimed): | 143 hp
106.6 kW
|
| Drawbar (tested): | 123.3 hp
91.9 kW
|
| PTO (tested): | 143.27 hp
106.8 kW
|
| Minneapolis-Moline A4T-1600 Engines |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Cab standard
|
| Transmission: | 10-speed
|
| Photos |
| | Minneapolis-Moline A4T-1600 photos... |
| Capacity |
| Fuel: | 100 gal
378.5 L
|
| Hydraulic system: | 32 gal
121.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 32 gal
121.1 L
|
| Valves: | 2 or 3
|
| Pump flow: | 21 gpm
79.5 lpm
|
| Tractor hitch |
| Rear Type: | II,III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@1800
|
| Dimensions & Tires |
| Wheelbase: | 120 inches
304 cm
|
| Weight: | 19,850 lbs
9003 kg
|
| Front tire: | 18.4-34
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| A4T-1600 Serial Numbers |
| 1970: | 45600001
|
| 1971: | 45600188
|
| 1972: | 45600701
|
| Final: | 45601190
|
| 1970: | 45700001 (LP-gas)
|
| 1971: | 45700127 (LP-gas)
|
| 1972: | 45700198 (LP-gas)
|
| Final: | 45700257 (LP-gas)
|
how to read serial numbers...
| |
